Caprolactam (CPL)&Adipic Acid

CPL is mainly used to produce polycaprolactam fiber resin, which is widely applied in textile, automobile, electronics, machinery, and other fields. At present, there are more than 30 companies worldwide producing CPL in 23 countries and regions, with a total annual production capacity of more than 5 million tons, which is a very key raw material.

Caprolactam (CPL) & Adipic Acid

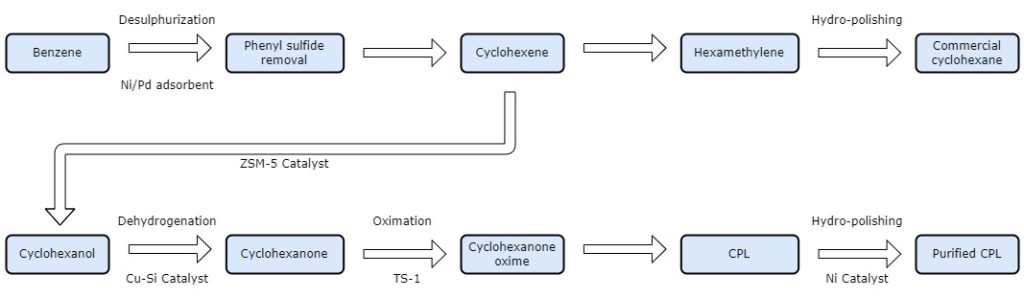

Sunchem has long focused on catalyst development and application in CPL industry chain and can provide a specialized series of catalyst products:

  • Benzene desulfurization adsorbent:the trace thiophene sulfur in benzene can be reduced from PPM to PPB.
  • Catalyst for hydrogenation of benzene to cyclohexene:Ni base tablet form catalyst.
  • Cyclohexane hydrofining catalyst: SNCAT series can reduce small amounts of benzene and cyclohexene to the PPM level, meeting the need for commercial cyclohexane.
  • Catalyst for dehydrogenation of cyclohexanol to cyclohexanone:more than 50% conversion and 99.5% selectivity can be achieved at 210 degrees by CUCAT series.
  • CPL hydro-polishing catalyst:Powder RaneCAT series catalyst can be applied for tank stirred hydrogenation process and SNCAT series,extrudates catalyst for fixed bed hydrogenation process.
ProductMetal content/typePromotor/CarrierShapeD50 Particle SizeApplications

SNCAT-8800TE

SNCAT-8800TE

≥48%NiSiO2-Al2O3Trilobe extrudate1.5mm
  • Hydrogenation of aldehydes
  • Hydro-polishing of alcohols

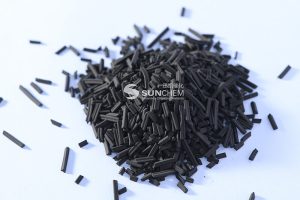

SNCAT-2100TE

SNCAT-2100TE

≥20%NiAl2O3Trilobe extrudate1.3mm
  • Hydrogenation of olefins
  • Hydro-polishing of CPL

SNCAT-2800TE

SNCAT 210028008800 300x200 1

≥27%NiAl2O3Trilobe extrudate1.2mm
  • Dearomatisation of solvents naphtha, kerosene and diesel
  • Hydrogenation of paraffins and white oils
  • Hydro-polishing of 1,4-BDO, OXO alcohols, fatty alcohols, etc.
  • Hydrogenation of olefins
  • Hydrogenation of aldehydes and ketones

SNCAT-1805TE

SNCAT-1805TE

≥20%(Ni+Cu)Al2O3Trilobe extrudate1.3mm
  • Hydro-polishing of 1,4-BDO, OXO alcohols
  • Hydrogenation of aldehydes and ketones

SNCAT-2605TE

SNCAT-2605TE

30-33%(Ni+Mo)Al2O3Trilobe extrudate1.3mm
  • Hydrogenation of C9 petroleum resins
  • Hydrogenation of rosins

RaneCAT-1200

RaneCAT (2)
≥83%NiFe, CrPowderD50:50-70um
  • Adiponitrile to HMDA
  • Hydrogenation of CN bonds
  • Acetone to isopropanol

CuCAT-3500T

CuCAT-3500T

≥30%CuOSiO2Tablet5*3mm
  • Dehydrogenation of cyclohexanol
